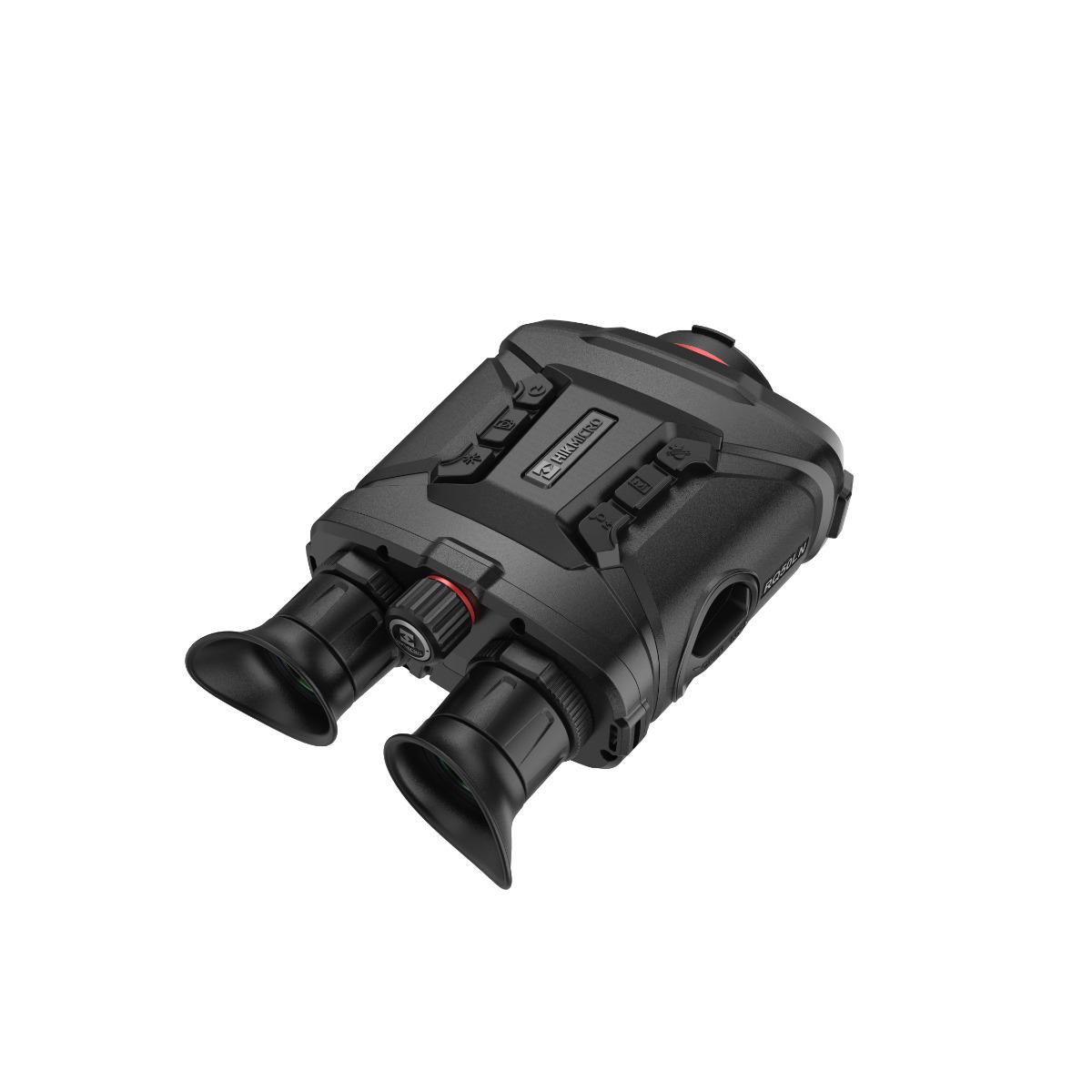

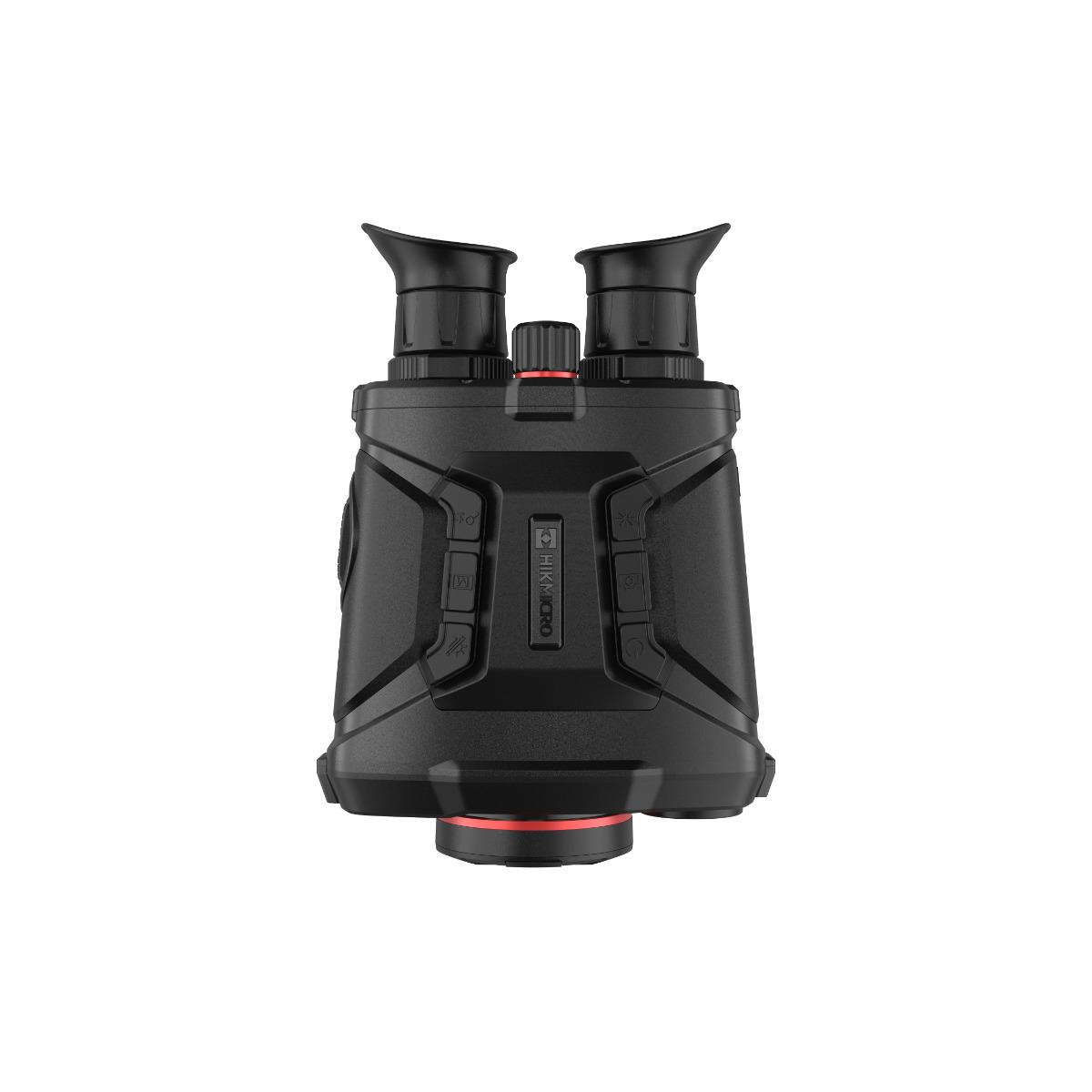

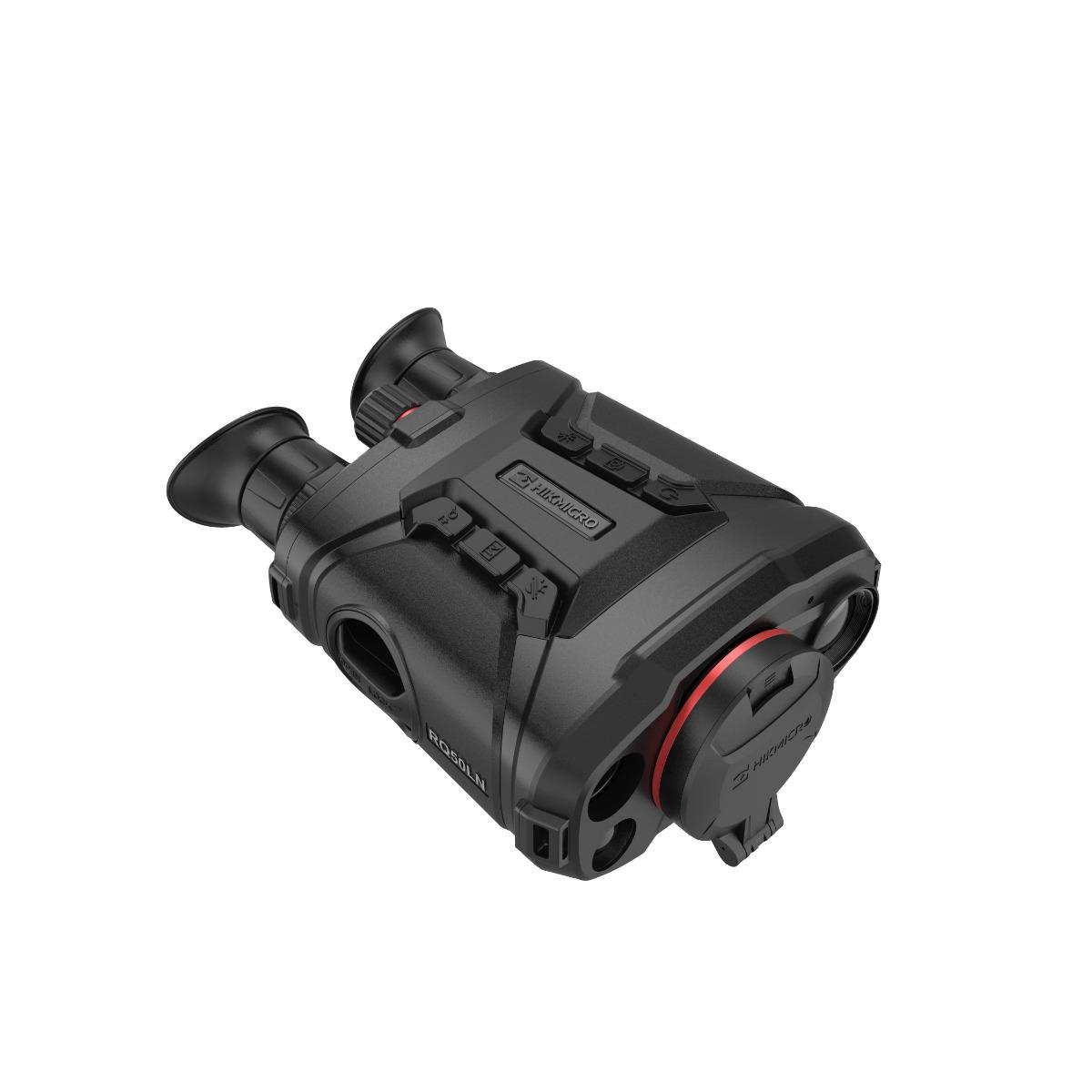

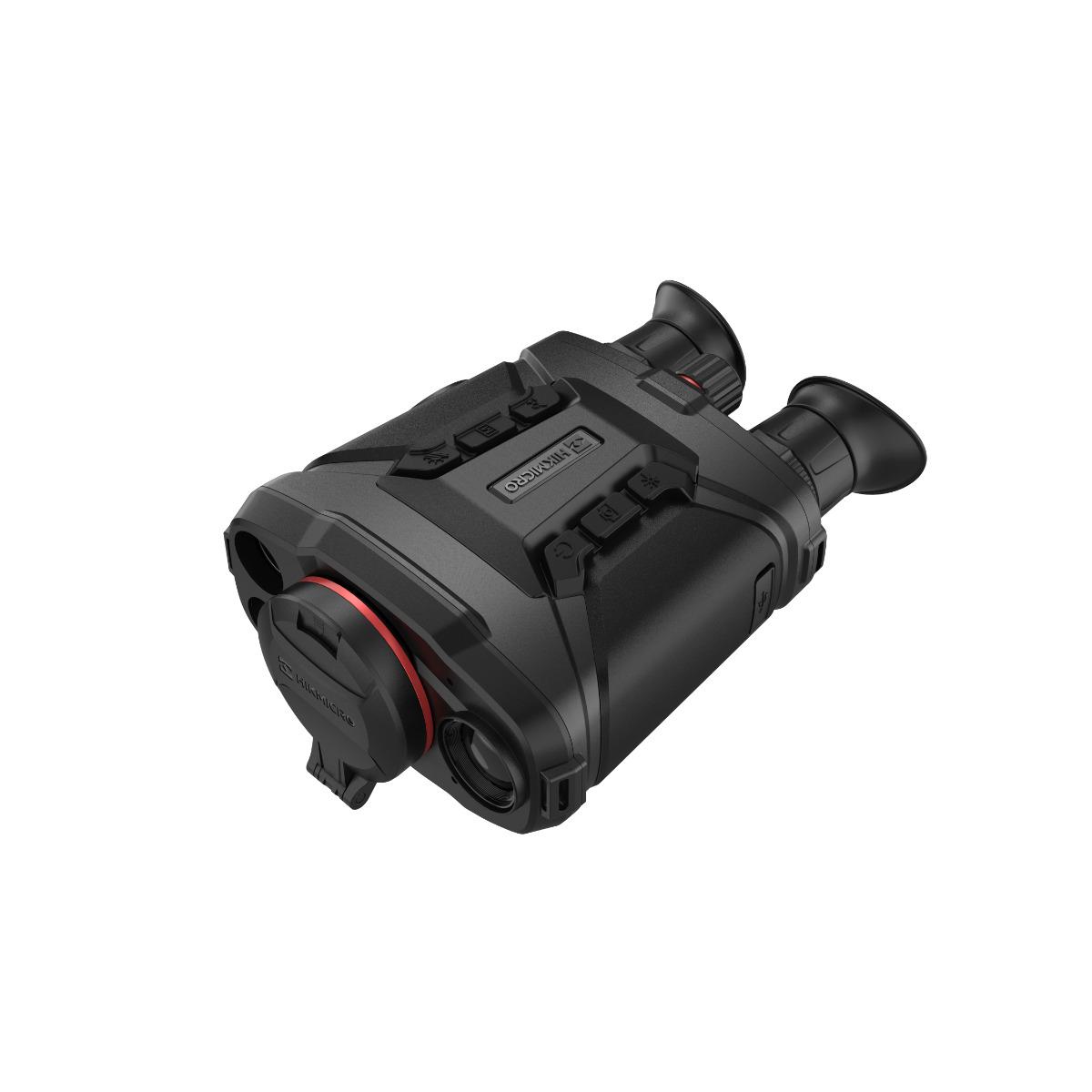

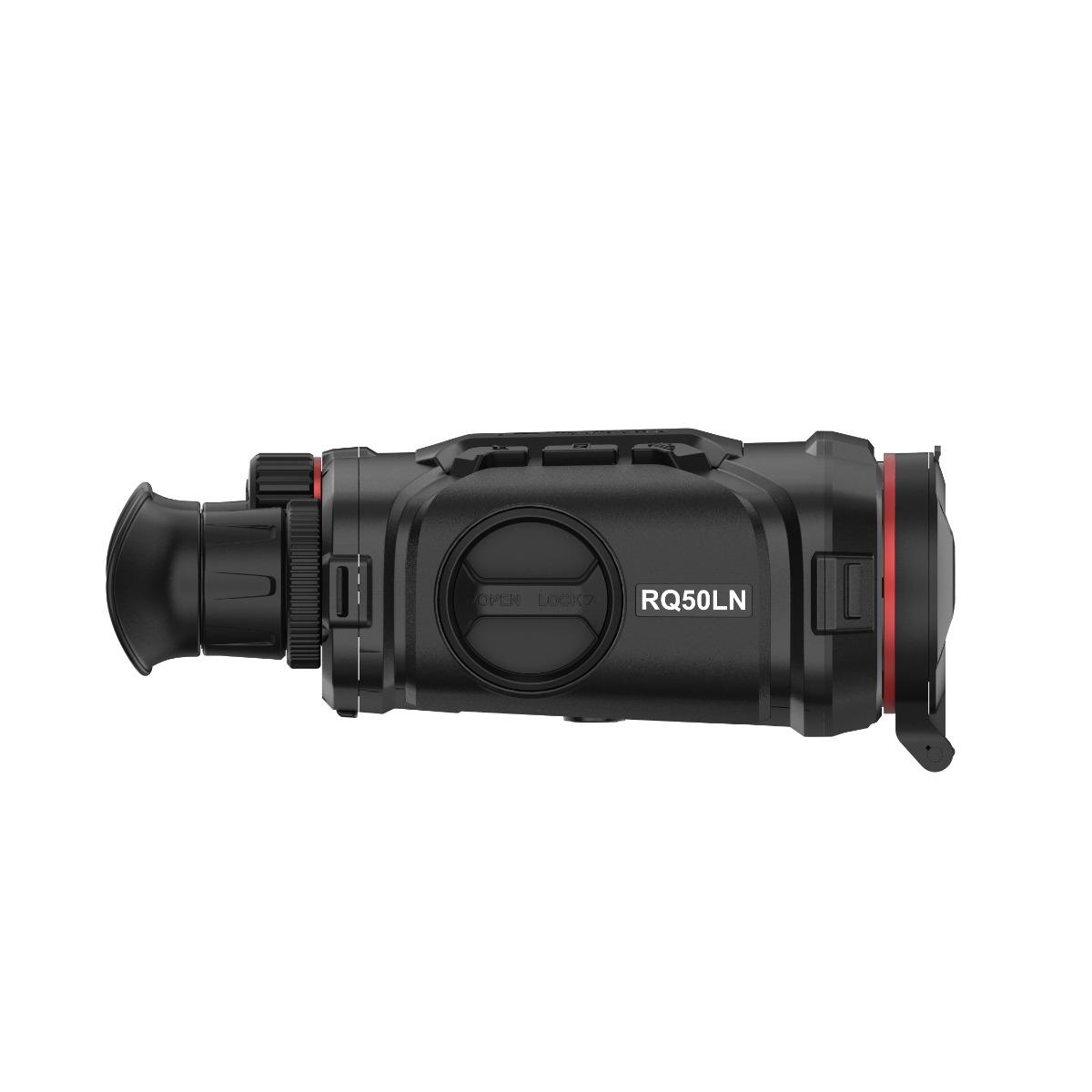

Thermal vision binoculars Raptor RQ50LN

The HIKMICRO RAPTOR series features a pair of revolutionary thermal and CMOS sensors.

The premier adopts a 12μm infrared sensor with record NETD < 20mk sensitivity. The second is a 2560x1440px digital sensor that lets you see true colors, day and night.

If required, a beam of intensity-adjustable IR light can be used to booster amplify performance.

An integrated laser rangefinder measures distances of up to 1000m with an accuracy of less than 1m.

The new RAPTOR thermal binoculars offer not only the best visual experience on the market, but also the most comprehensive one, in all weathers and conditions.

Thermal module

• Sensor: 640x512, 12µm


• NETD: <20mK (@25°C,F=1.0)


• Lens: 50mm, F0.9


• Width of champ m@100m : 8.8°x7.0°/15.4mx12.2m


• Detection range: 2600m

Optical module

• Resolution: 2560x1440


• Lens: 31 mm, F1.2


• Minimum brightness: 0.001 lux @ (F1.0, AGC On)


• IR wavelength: 940nm


• Width of champ m@100m : 10.3°x7.7°/18.0mx13.5m

Display

• Display: 0.39", OLED, 1024x768


• Zoom Magnification: Optical = 2.9x, Thermal = 3.4x/5.7x, zoom digital up to 8x


• Image mode: optical mode (day/night/auto/defogging), thermal mode (white hot/black hot/red hot/fusion), Image FusionT

Battery

• Battery type: removable and rechargeable Li-ion, type-C interface


• Operating time: >8h

Function

• Laser rangefinder: 1000m measurement distance (±1m measurement accuracy)


• Autres functions : PIP, GPS, DMC, Local Album, hotspot, video & photo recording

General

• Operating temperature : -30°C to +55°C


• Water resistance : IP67


• Weight: <1.35kg


• Dimensions : 217.5 x 155 x 87.5 mm
