Thermal vision camera Condor Falcon FH25

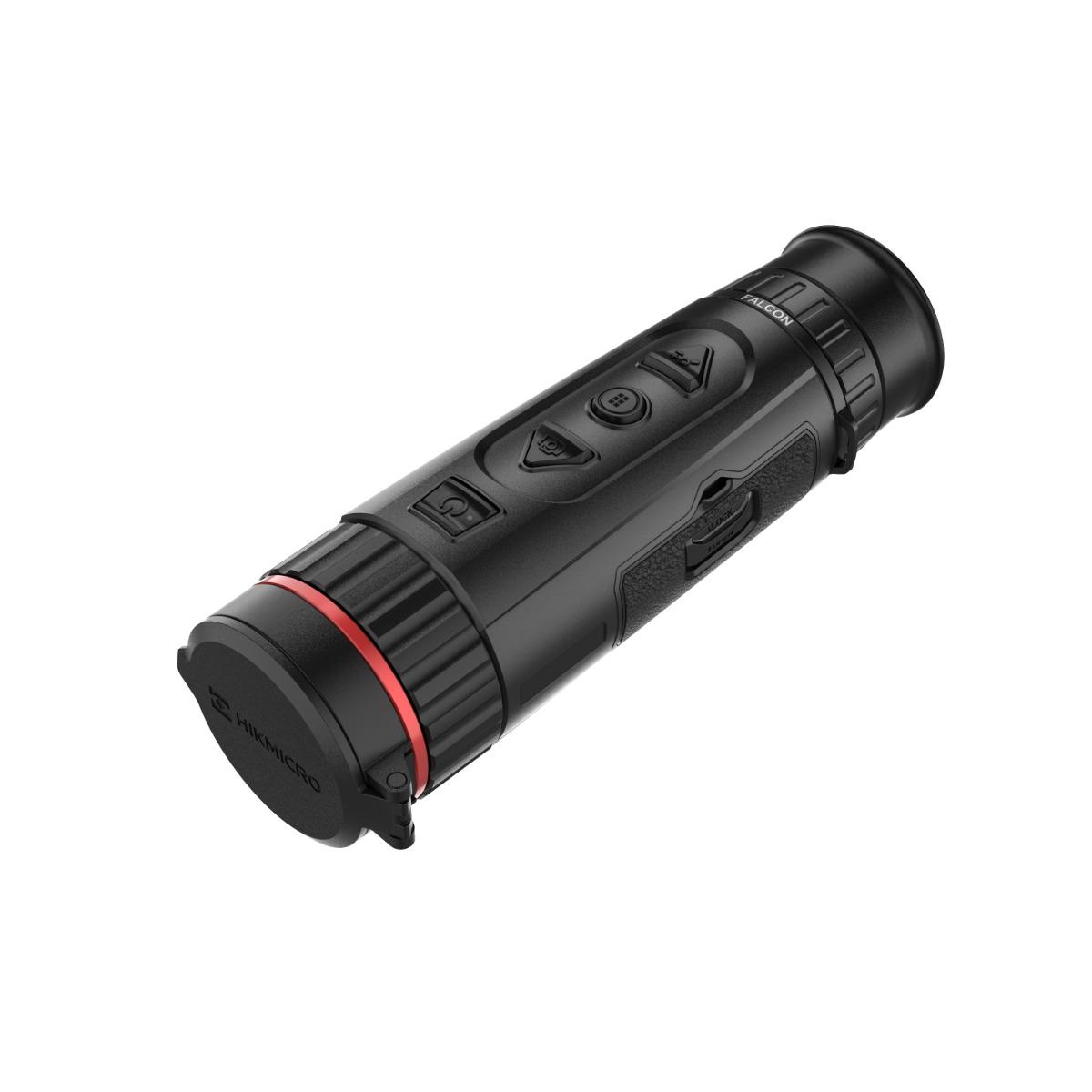

The HIKMICRO FALCON FH25 portable monocular thermal camera features an infrared sensor with 384 x 288 pixel resolution and a 1024 x 768 pixel OLED display.

It supports observation, hotspot and other functions.

The integrated high-sensitivity thermal detector gives you a clear view even in total darkness.

The monocular is mainly applied to scenarios such as search and rescue, hiking, travel and hunting, etc.

Key features

• 384 x 288 pixel resolution with 12µm sensor


• High-sensitivity thermal module NETO< 20 mK [@25°C, F = 0]


• Replaceable and rechargeable Li-ion battery


• Up to 7 hours continuous operation


• State-of-the-art thermal image processing: Image Pro


• 1024 x 768 pixel resolution 0.39-inch OLED screen

Thermal sensor

• Sensor: Uncooled focal plane array


• Resolution: 384 x 288


• Frequency: 50 Hz


• Pixel interval: 12 µm


• NETO: > 20 mK (@25°Cl, F = 1.0


• Focal length: 25mm


• Diaphragm: F1.0


• Min. focusing distance point: 2.5 m


• Zoom digital: 1x, 2x, 4x, 8x


• Optical magnification: 2.17


• Champ from vision: 10.5° x 7.9° / 18.4m x 13.8 m


• Detection range: 1200 m

Image display

• Monitor: 0.39 inch, OLED, 1024 x 768


• Palettes : Warm black, Warm white, Warm red, Fusion


• Flat champ correction: Automatic, Manual, External correction

System

• Storage: Integrated memory module (64 GB)


• Video recording: yes


• Photo capture: yes


• Sleep mode: yes

Power supply

• Power: 5V, 1.75W


• Battery type: Replaceable, rechargeable Li-ion battery


• Operating time: 7 hours continuous operation with CVBS and hotspot function deactivated (@25°C)

General

• Operating temperature : -30°C to 55°C, Humidity: 90% or less


• Protection rating: IP67


• Dimensions: 187.7 mm x 58.3 mm x 65.2 mm (7.39″ x 2.29″ x 2.57″)
