Description

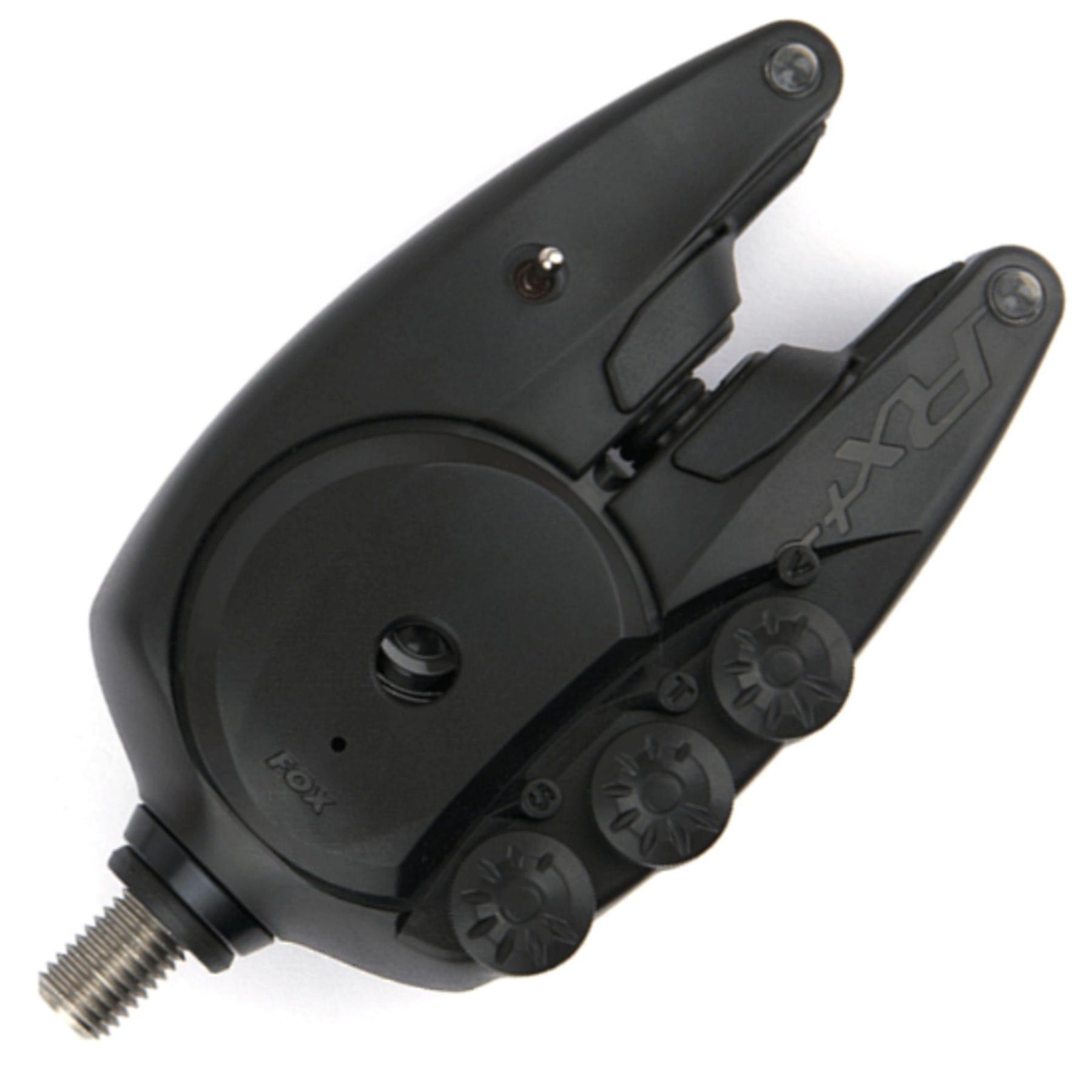

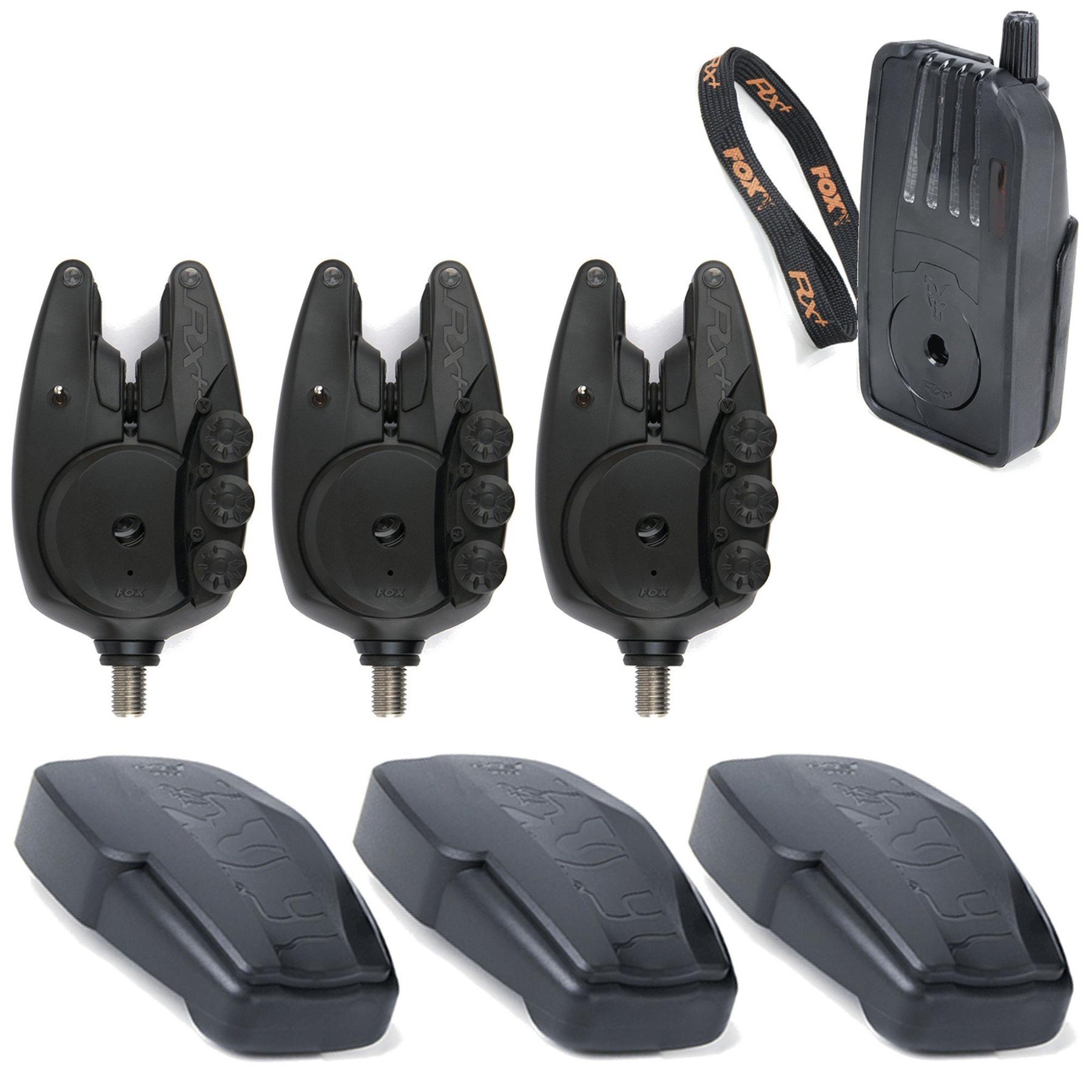

Detector Fox RX+ 3-Rod

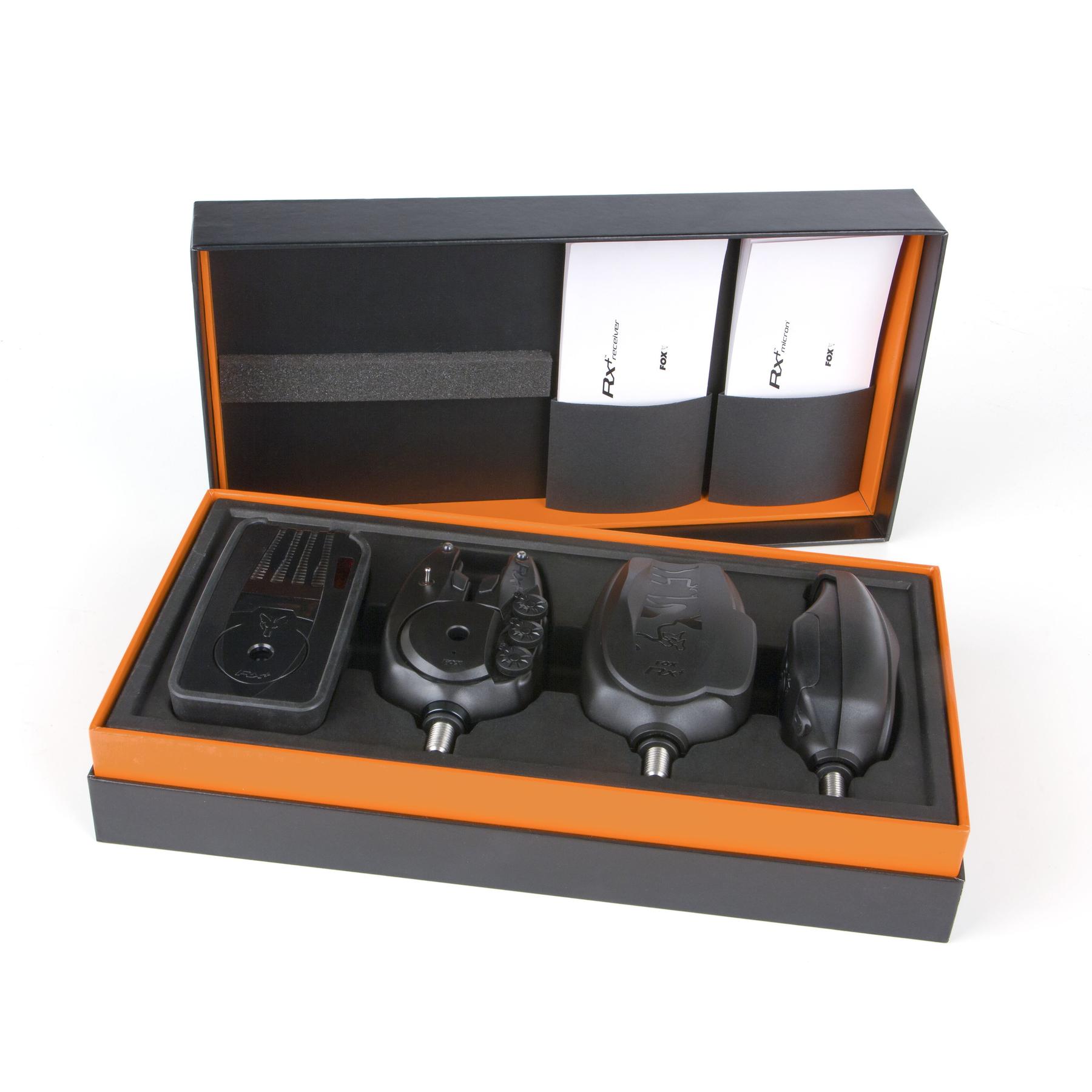

- Fox Rx+ Rod Presentation Set
- Weatherproof sealed case
- Digital circuitry
- D-Tec Plus Sensing System (DTSS)
- Low battery drain
- CNC machined Tru-Run roller wheel
- Twin multi-color LEDs (Red, Green, Blue, Orange, Violet and White)
- On / Off toggle switch with 2 modes of operation (day and night mode)
- In night mode, both LEDs light up subtly in the color of your choice
- High quality cone speaker
- Rigid 3/8" stainless steel thread
- Rubber inlays compatible with rods
- Ergonomic indexed control for volume (8 different volume levels, lowest setting is completely silent)
- Ergonomic indexed control for sound (8 different tone settings : (8 different tone settings: turn clockwise to increase tone and counterclockwise to decrease tone)
- Indexed ergonomic control for smart sensitivity with See-Sawelimination function (8 different sensitivity settings - see below sensitivity chart for comparison with NTX-R)
- Range test function allowing the user to verify that the RX+ receiver is picking up the RX+ head at a given range
- Low battery warning (LED color changes to cyan indicating time to replace batteries)
- Power output jack (2.5mm) for use with illuminated Swingers
- Supplied with two compression washer options: rigid and soft with one additional spare soft washer per unit
- Requires 2 AA batteries
- RX+ single heads, RX+ receiver, 3 and 4 stem presentation sets also available separately
- Improved features over NTX-R
- Deeper ears without increasing alarm height
- Two multi-colored LEDs, one per ear and at the very top of the ear
- External control of the multi-colour LEDs with Colour Sync function - simply change the colour of the LEDs via the button on the battery cover
- Manually selectable day and night modes
- External control of LED brightness Vari-Brightness adjustable to suit the conditions you are fishing in (choice of 3 different LED brightness settings in day mode and 3 different brightness settings in night mode) - simply adjust via the button on the battery cover
- Greater clearance around the roller wheel and improved drainage greatly reduces the risk of the roller wheel freezing in extreme cold conditions. - Better range performance with the RX+ receiver. - Better sensitivity range (see below), the line must travel the specified distance in the same direction and within 2 seconds to trigger the unit. Any movement in the opposite direction resets the distance counter to zero. This can greatly reduce or eliminate false triggers caused by wind and water movement.
Line MovementRX+ Line Movement NTX-R Setting 1 (Min) 90mm 74mm Setting 2 73mm 56mm Setting 3 56mm 48mm Setting 4 34mm 40mm Setting 5 17mm 32mm Setting 6 11mm 24mm Setting 7 5.6mm 16mm Setting 8 (Max) 2.8mm 8mm

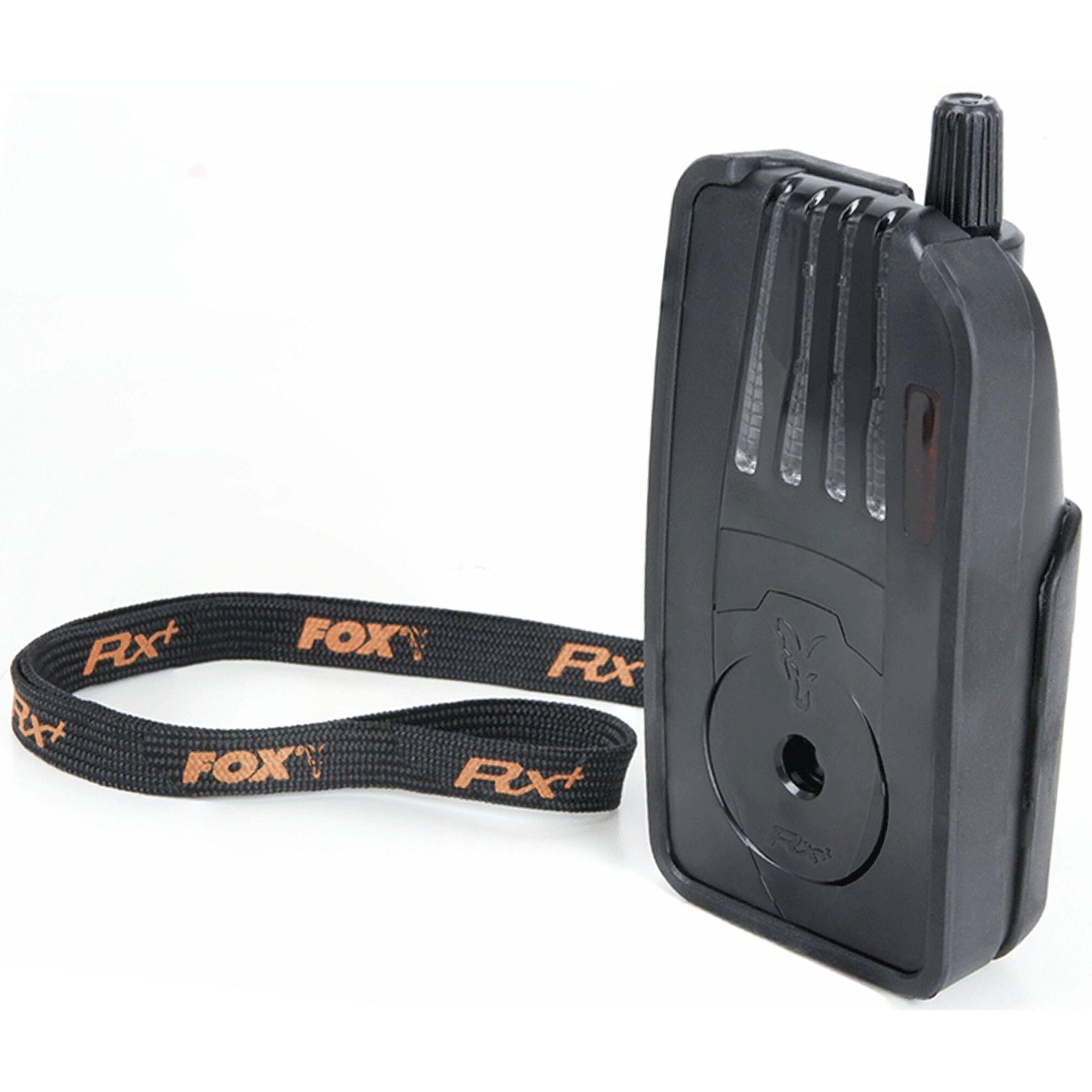

RX+ Receiver
Features
- Ultra long range
- Digital circuitry
- Low battery consumption
- Battery life indication when receiver is switched on (4 x green LEDs indicate full/near full, 3 x green LEDs indicate batteries are in use but do not need replacing, 2 x orange LEDs indicate batteries are running low, 1 x red LED indicates batteries are low and need to be replaced)
- Low battery alert (LEDs flash cyan periodically to indicate batteries need to be replaced)
- Low battery alert (when the RX+ head goes into low battery alert, the receiver for this particular alarm changes color to cyan)
- Vibration alert function (via switch on back)
- Lighted bivouac function (via switch on back, see below for details)
- Anti-theft alarm
- Easy registration of Micron RX+ (via switch on back)
- Indicator LEDs with color synchronization
- On/Off and volume control
- High quality cone speaker
- Lanyard attachment point
- Requires 3 x AA batteries
- Enhanced features over NTX-R receiver
- Larger indicator LED windows, visible from both the front and top of the receiver
- Optional bivy light function when you get a bite
- Freestanding design for placement on bivy table/bucket lid
- Soft grip case
- Ability to synchronize up to eight RX+ Micron heads
- Stronger radio performance
- Quiet mode ON, full receiver function but no audio output
Lighted bivouac function
When the lighted bivouac function is activated via the switch on the back of the receiver, it behaves as follows:
- The indication lights on the receiver will be slightly dimmed to prevent the receiver from emitting too much light while the bivy light is active
- The bivy light will only turn on if three bite triggers are received in succession to prevent lines and false indications from unnecessarily lighting up your bivy
- The bivy light will turn off in full brightness and remain on while the alarm continues to send trigger signals to the receiver. The light will turn off smoothly within 5 seconds of the trigger lights going off on the receiver, as long as no other indication is received.
